Nexus delivers significantly increased thrust and enhanced orbit-raising capabilities for spacecrafts up to 500 kg. Accepting orders now for delivery in Q4 2026.

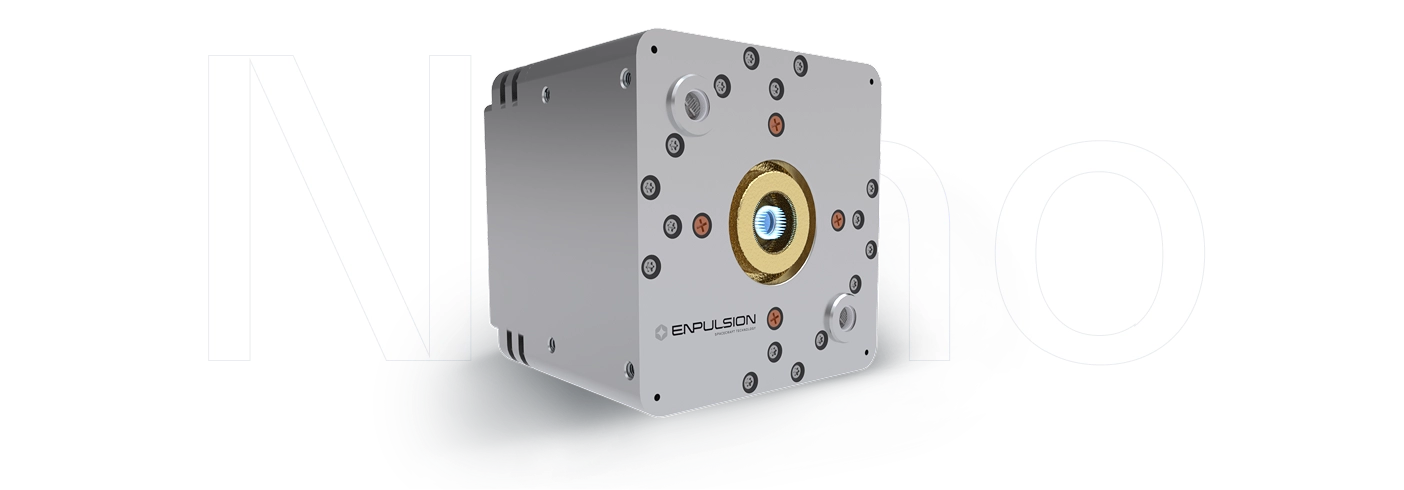

Introducing the Nano R³

The Enpulsion Nano R³ elevates our proven FEEP propulsion system with advanced software, improved electronics, and enhanced thermal design.

Innovative updates take electronic reliability, radiation tolerance, and mission resilience to new heights.

Nano R³
<p>Nano R³</p>

Nano R³

Precise, adjustable propulsion with enhanced reliability
and performance

Dynamic Thrust Range 150-350 µN Need more thrust?
Nominal Thrust

45 W incl. neutralizer

Specific Impulse

2,500s at 350 µN

Propellant Mass

215 g +- 2%

Total Impulse

5,300 Ns at 350 µN

Outside Dimensions
  • Excluding protrusions: 98.0 x 99.0 x 95.3 mm
  • Including protrusions: 100.95 x 99.0 x 97.3 mm
Mass (Dry/Wet) <1280 / <1500 g
Hot Standby Power 4 - 7 W
Total System Power 30 - 50 W Need more power?
Command Interface RS422 / RS485
Supply Voltage 12 V
Download Data Sheet
Enpulsion Icon

Talk to an Expert

Talk to an expert to see how the Nano R³ can elevate your next mission.

György Biró

György Biró

Global Director of Strategic Business Development and Sales

Features

Discover the Benefits of Next-Gen Innovation

Nano R³

Flight Heritage

Flight Heritage

Legacy-Driven Reliability

Built on a legacy of over 280 flight units, the Nano R³ leverages insights gained through in-orbit operation to advance our proven design with specialized components to provide even greater reliability.

Protective Casing

Protective Casing

Durable, Flexible Integration

The Nano R³’s rugged casing shields onboard electronics from space radiation, simplifies integration, and enables flexible side mounting for enhanced durability and ease of use.

Rad Tolerant Electronics

Rad Tolerant Electronics

Consistent, Qualified Performance

All EEE components are procured in lot-controlled batches. Select batches are radiation-tested, ensuring each thruster traces back to a fully qualified model with improved TID and SEE tolerance.

Operational Versatility

Operational Versatility

Precision Thrust Control

Thrust is finely tuned via electrode voltages, providing exceptional control across the full thrust range and allowing operations with low thrust noise. The efficient ionization process also enables market-leading specific impulse levels.

Safe, Stable Design

Safe, Stable Design

Solid-State Safety Architecture

With no moving parts and solid-state indium propellant, the Nano R³ eliminates volatile materials and pressurized tanks. The lack of reactive propellants simplifies handling, integration, and launch procedures.

Indium Powered Propulsion

Powered by Enpulsion’s innovative FEEP technology, the Nano R³ delivers precise, adjustable thrust by using a powerful electromagnetic field to ionize and accelerate liquified metal propellant.

Nano R³

Next-Level Maneuverability

Indium propellant liquifies in orbit to generate finely tunable thrust, delivering efficient, precise maneuverability throughout the entire life of the mission.
